Woods

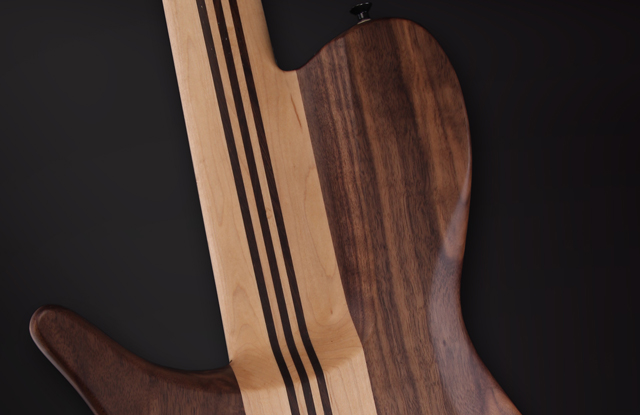

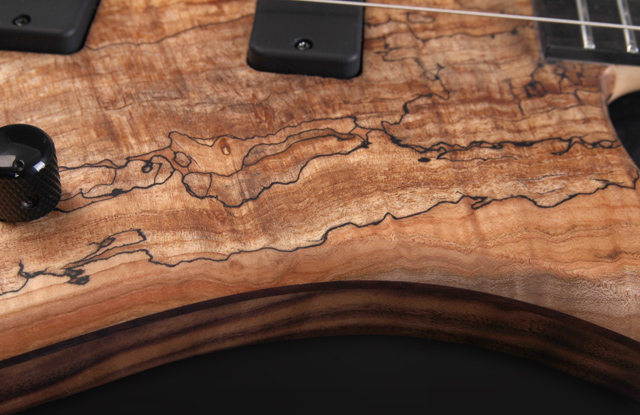

  • Body: Spalted maple top, black walnut  back
  • Neck: 7 piece laminate, Hard Maple & Wenge
  • Width at the nut: 45.5 mm
  • Width at th 24.frets: 80 mm
  • Fingerboard radius: 16"/407 mm
  • Fingerboard: African Ebony
  • Positional marks on the fingerboard: none
  • Positional marks at the side of the fingerboard: Pearl
  • Nut: Brass
  • Body finish: Natural, Satin Matt
  • Neck finish: Natural, Satin Matt

Hardware

  • Bridge: Hipshot A style, Aluminum, black
  • String spacing at the bridge: 18 mm
  • Tuning machines: Hipshot Ultralite, black
  • Frets: 24x, Jumbo 2.4 mm wide
  • Control knobs: Metal knobs with oval head, black
  • Strap pins: Dunlop strap locks, black
  • Strings: Elixir Nickel Roundwound 0.045-0.130
  • Weight: 4.3 kg

Electronics

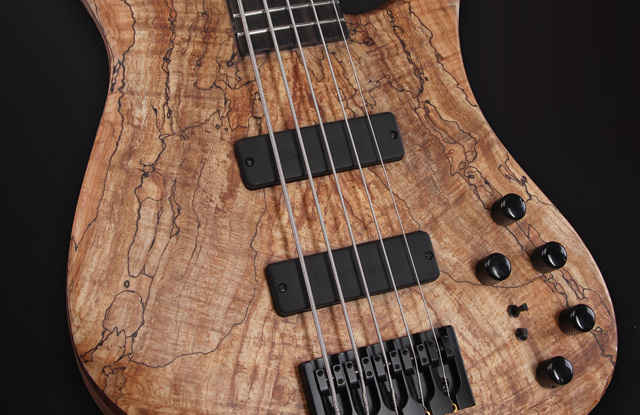

  • Neck pickup: Bartolini XXM45 Dualcoil
  • Bridge pickup: Bartolini XXM45 Dualcoil
  • Electronics: Active/Passive electronics Aguilar OBP-3
  • Wiring: Main volume with push/pull to passive, pickup blend, 1xEQ bass, 1x EQ mids, 1xEQ treble
  • 2x mini switch for splitting pickups as series/single/parallel
  • Output jack: stereo 6.3 mm
